Product Description
The AHT10 is a new generation of temperature and humidity sensors, sets a new standard in size and intelligence: it is embedded in a dual-row flat leadless SMD package for reflow soldering with a 4 x 5mm bottom and a height of 1.6mm. The sensor outputs a calibrated digital signal in standard I2C format. The AHT10 is equipped with a newly designed ASIC-specific chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element. Its performance has been greatly improved beyond the reliability level of previous generation sensors. The first generation of temperature and humidity sensors have been improved to make them more stable in harsh environments.
Important note:
When you receive this module, please leave it in the environment with humidity greater than 80% for 12 hours to ensure the accuracy is restored.
Specification:

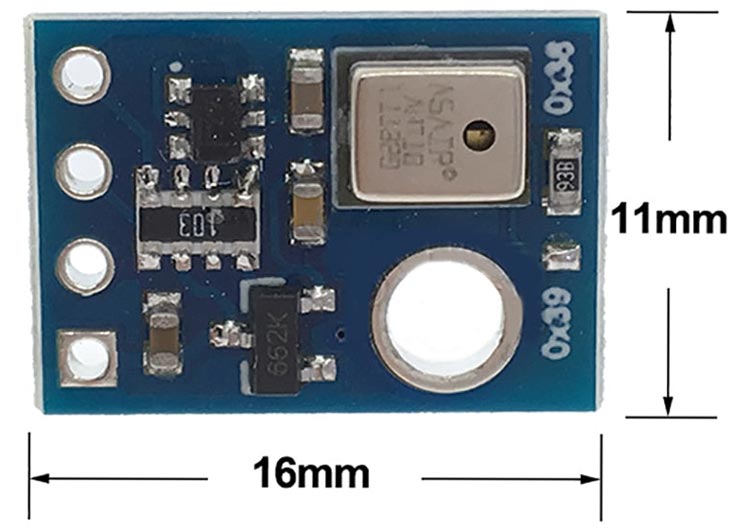

- Interface size: 4 x 2.54mm pitch
- Working voltage: 1.8 – 3.6 V
- Working temperature: -40°C–85°C
- Humidity accuracy: typical ± 2%
- Humidity resolution: 0.024%
- Temperature accuracy: typical ± 0.3 ° C
- Temperature resolution: Typical 0.01 °C
- Interface type: I2C
Application:
HVAC ,dehumidifier ,testing and testing equipment, consumer goods; Automobiles ,Automatic control ,data recorders, weather stations, household appliances, humidity regulation, medical and other related temperature and humidity detection and control .
