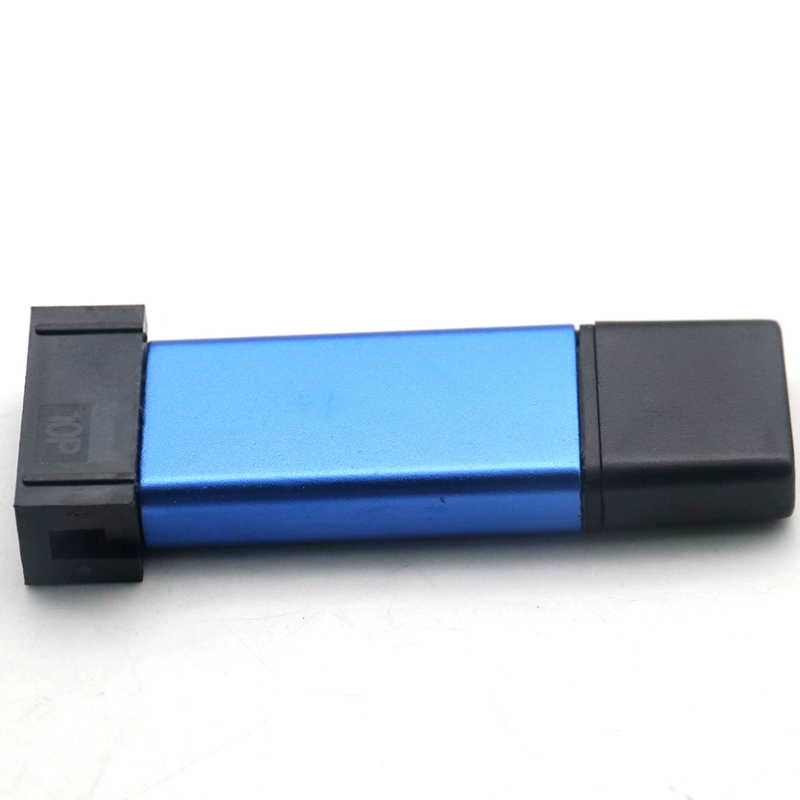

ST-Link V2 Emulator Downloader Programmer (Random Color)

Product Description

This ST-Link V2 Emulator Programmer is used to download programs and debug programs for STM32 and STM8 chips.Supports debugging of the entire series of STM32 SWD interfaces with a simple 4-wire cable; Supports downloading and debugging of the entire series of STM8 SWIM;

Features

• Supports debugging of the entire series of STM32 SWD interfaces with a simple 4-wire cable;
• Supports downloading and debugging of the entire series of STM8 SWIM;
• Supports common development environments such as IAR, STVD, and Keil
• Supports automatic firmware upgrades

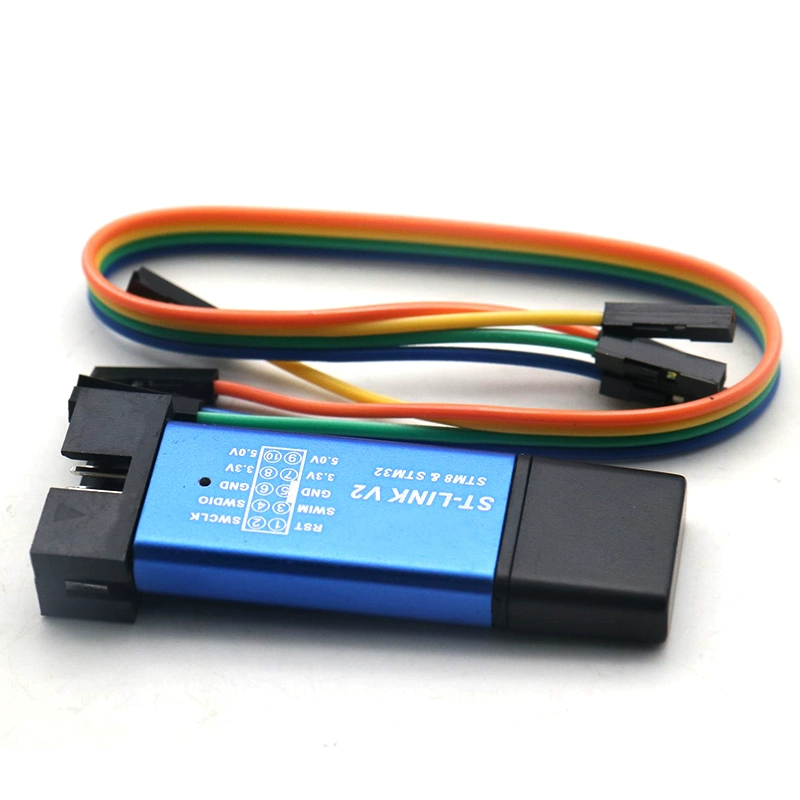

• Comes with 4 Dupont wires, allowing you to easily deal with different target board wire sequences

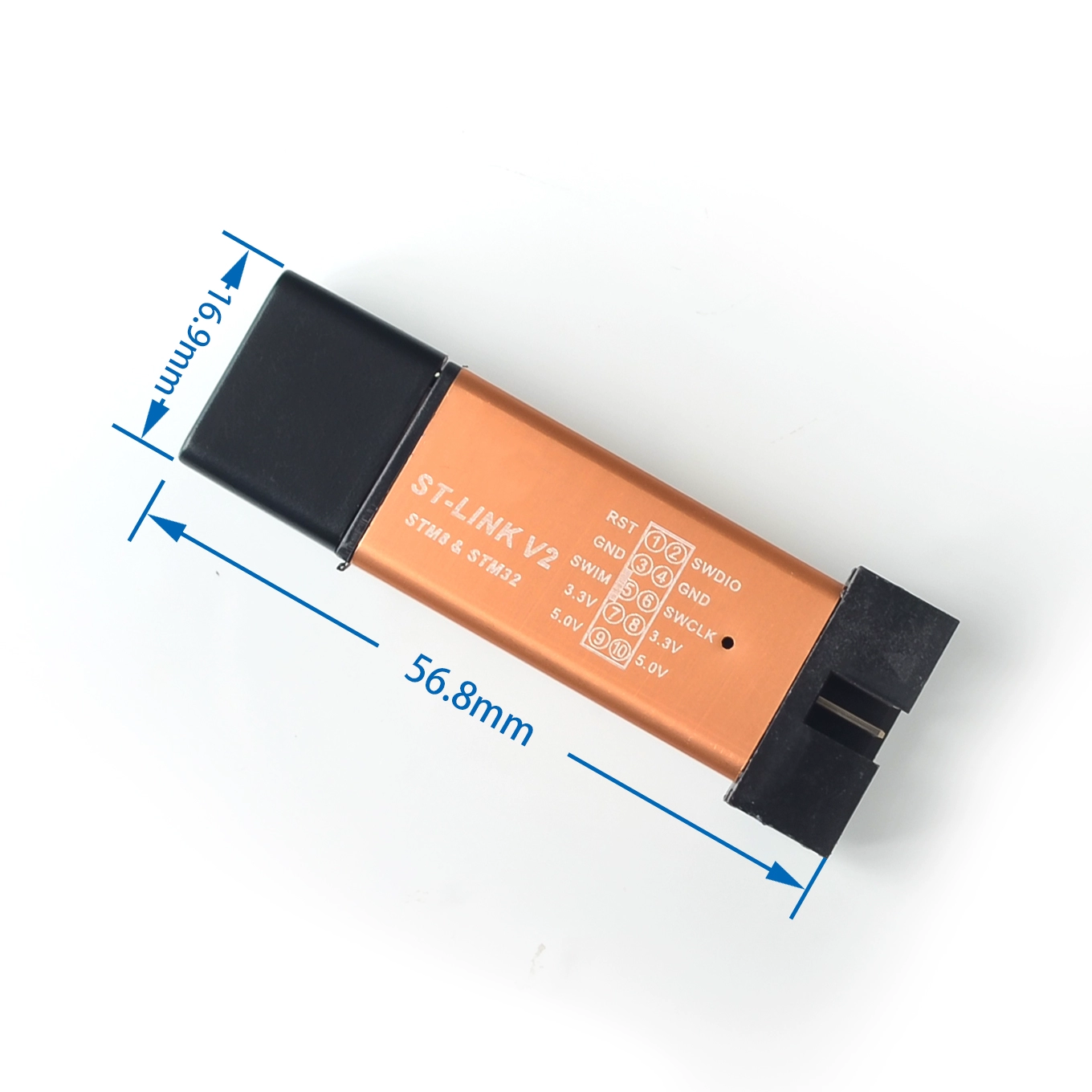

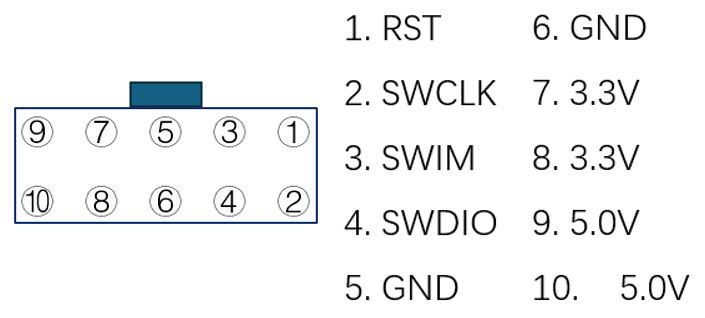

• The interface definitions are directly marked on the shell for easy understanding and practical use
• All output I/O ports are protected, preventing damage to the ST LINK V2 due to operational errors;
• Interfaces use pure copper gold-plated 2.54mm spaced simple horn seats, equipped with 20CM Dupont wires
• Both 5V and 3.3V are provided simultaneously, making it convenient to connect to both 5V and 3.3V target boards
• The internal motherboard comes with a 500MA self-resetting fuse to protect your expensive computer motherboard
• Red and blue dual-color LED indicators make it easy to observe the working status of the ST-LINK V2 at all times
• An aluminum alloy shell is used to protect the motherboard, making it easy to carry, resistant to static electricity, and shock-resistant.

Typical applications

• Program STM32/STM8 microcontroller
• Debug STM32/STM8 software
