Product Description

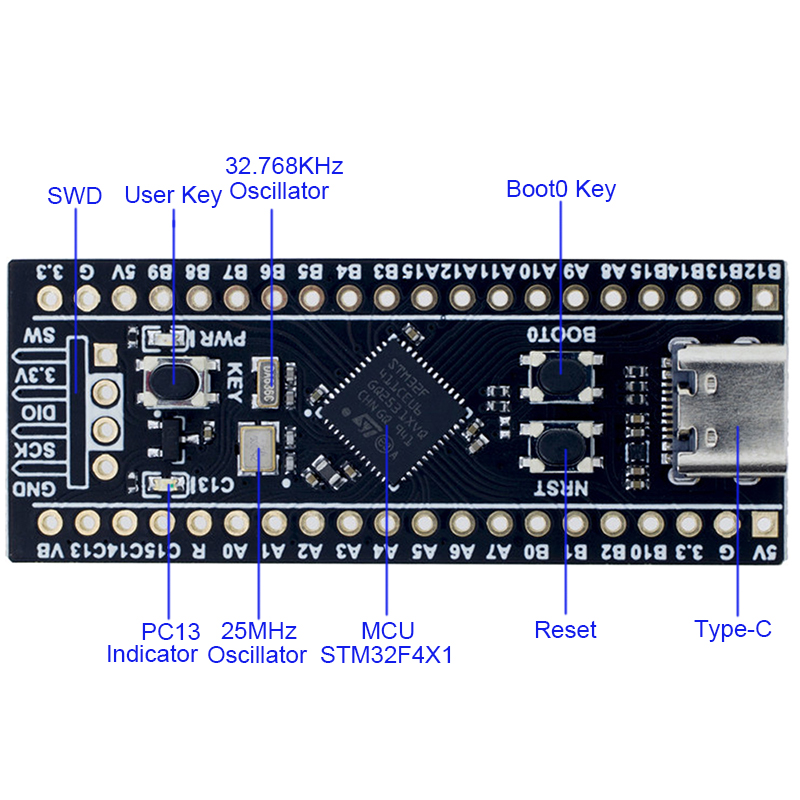

This core board contains an STM32F401 chip, include STM32F401CCU6 and STM32F411CEU6, a crystal oscillator, and a reset circuit, forming a minimal system capable of running programs. The I/O pins are brought out through pin headers, allowing the connection of various peripherals, making it very powerful.
Features
- Based on the STM32F401CCU6 or STM32F411CEU6 MCU, a ARM Cortex-M4 core, 84/100MHz main frequency, with 256KB/512KB Flash and 64KB/128KB SRAM.
- Work voltage:1.7V-3.6V
- Support peripherals: USART, SPI, I2C communication interface, multiple types of timers and high-performance ADC, DAC.
- A mini USB port is used to power on the system board and reserve the USB communication function.
- Reset button on the board.
- Standard SWD debug interface on the board, support STLINK, JLINK.
- boot select port.
- One power indicator and one function indicator.
- All function pins are pinned out and connected to the 40-pin header.

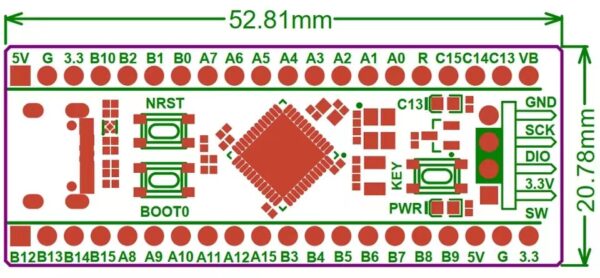

- PCB size: 53mm x 22mm
Typical applications
- Learn STM32 microcontroller
- Used in all kinds of intelligent control devices
